How to set up a RFID encoder object

Samantha Petro

BarTender Content Team

  • Updated

This video will walk you through setting up a RFID encoder object, and explain how to encode to multiple segments.

For more information on encoder objects, and the RFID properties, refer to the online documentation Encoder Object.

You must use Drivers by Seagull™ to encode RFID in BarTender. For help installing a printer driver, watch this video.

Video Walkthrough

Step-by-step Guides

BarTender 2022 and later

Setting up a RFID encoder object

BarTender will only show encoder objects compatible with your printer.

  1. Make sure the correct printer is selected (File > Print) before adding your encoder objects or they will not be available in the drop-down menu.
  2. Click the Encoder object icon on the Object toolbar and select the desired type of encoder.

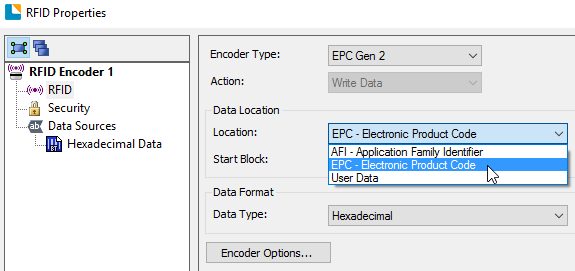

  3. Set the data location you wish to encode to.
  4. Set the data type of the data string you are encoding.
  5. Advanced driver settings are available under Encoder Options, including media settings, error handling, and security options.
  6. Once the advanced settings are configured, you may set your data string
  7. Close the RFID properties when finished.  Since the object is not physically printed on the document, it will show up as an object outside of the printable region

Encoding to multiple RFID data segments/ locations

Each encoder object may only be set to a single data location or segment.  If you need to encode to multiple segments (AFI, EPC, User) of the RFID transponder, then you will need to add multiple encoder objects to your document, and set each object to encode to a different segment.

  1. This document has three encoder objects - each one encodes to a different data segment
  2. The first encoder object, RFID Encoder 1, is encoding data to the AFI segment.
  3. The second encoder, RFID Encoder 2, is encoding data to the EPC segment.
  4. The third encoder, RFID Encoder3, is encoding data to the User Data segment.

BarTender 2021 and earlier

Setting up a RFID encoder object

BarTender will only show encoder objects compatible with your printer.

  1. Make sure the correct printer is selected (File > Print) before adding your encoder objects or they will not be available in the drop-down menu.
  2. Click the Encoder object icon on the Object toolbar and select the desired type of encoder.
  3. Set the data location you wish to encode to.
  4. Set the data type of the data string you are encoding.
  5. Advanced driver settings are available under Encoder Options, including media settings, error handling, and security options.
  6. Once the advanced settings are configured, you may set your data string
  7. Close the RFID properties when finished.  Since the object is not physically printed on the document, it will show up as an object outside of the printable region

Encoding to multiple RFID data segments/ locations

Each encoder object may only be set to a single data location or segment.  If you need to encode to multiple segments (AFI, EPC, User) of the RFID transponder, then you will need to add multiple encoder objects to your document, and set each object to encode to a different segment.

  1. This document has three encoder objects - each one encodes to a different data segment
  2. The first encoder object, RFID Encoder 1, is encoding data to the AFI segment.
  3. The second encoder, RFID Encoder 2, is encoding data to the EPC segment.
  4. The third encoder, RFID Encoder3, is encoding data to the User Data segment.
